SVG Extrusion

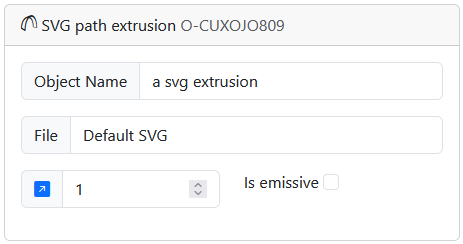

Properties
A Extrusion SVG
- A relevant name to help you distinguish it amongst other objects
- A SVG file previously uploaded in the resource panel
- A depth (along the Z axis)
How to produce SVG files
We recommend Inkscape to build and edit your SVG files. Inkscape is not only extremely powerful. It is also open-source and downloadable free of charge.
How to fix most common issues (it's a bit technical, sorry)
Let's first explain what Briow does to process SVG files

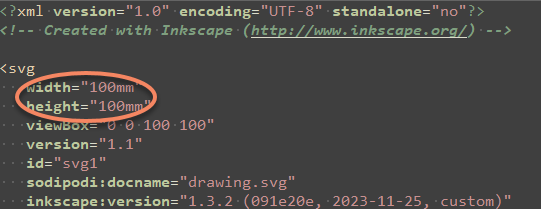

- Briow loads the SVG file and reads its
widthandheightattributes. The unit is ignored. If the width value is 100 (mm, px, ...), the width within Briow will be 100.
- Briow exclusively browses
<path>tags. - Each SVG path
- is divided into points that are used to create a 2D shape
- The 2D shape is extruded
- The SVG path color is used as a texture.
Some shapes aren't rendered
Briow exclusively renders paths. Circles, rectangles, text, stars, or any other native shape proposed by Inkscape are ignored.
All objects and strokes (lines with a width) must therefore all be turned into paths.
To do so, make a copy of your original file and select Path > Object to path or Stroke to path on each object or stroke.
The center of mass looks incorrect
To fix it within Inkscape
- Make sure the view box matches the dimensions of the document (0, 0, width, height). Press
File>Document propertiesand then View box in the Display tab. - Remove all groups (and sometimes layers) as they may create some unexpected resizing effects in Briow
Curves looks ugly once rendered in Briow
Increase the size of your original SVG document and scale up your drawing. The render will look huge in Briow, use the scale parameter of the Instance to make it smaller in your scene.
Texts are badly rendered even after I converted them into paths
Make sure you break letters appart after the conversion.
Shapes with holes are badly rendered
Yes, this is a bug.
